Basic knowledge of flight case

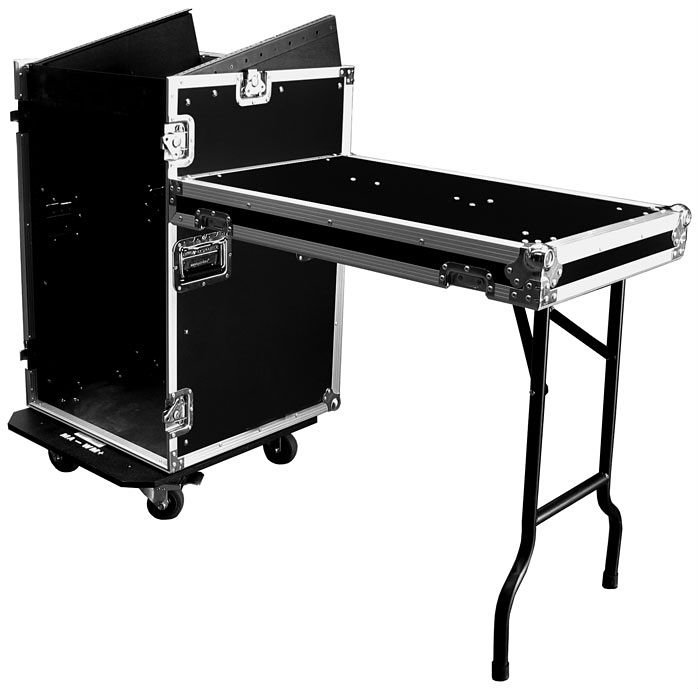

- the U case series. U case can also be called subrack, its to use the bilateral U plate that the equipment can be installed in the u case cove. The standard Flight Case size according to the size of the server = 19 inches (482 mm) wide X high multiples (44.45 mm). 19 inches in width and height to 44.45 mm as the basic unit. 1 u case the width is 19 inches and the height is 44.45 mm.
The U case of the flight case generally consists of 9 mm plywood or 12 mm plywood with fire prevention board.The Compose built of the U case with Movable cover, U plate installed on both sides of case,suit for the defense equipment.
The U case may got the commonly used u case,with 9 mm or 12 mm plywood with fire prevention board to suppress.The Bilateral U plate distance between holes and hole is 19 mm.
The other is Anti-shock Rack Case
, the basic structure of Shockproof case is composed of fire prevention board with splint suppression

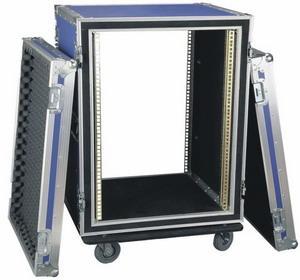

Anti shock rack case
At last the Slant Case the basic structure of Slant Case with 9 mm or 12 mm plywood with fire prevention board to suppress and consists of 11 ,12 U or U inclined or 2 U panel.
Slant RACK CASES flight case
